Presses and extruders

Presses and extruders for the production of fresh pasta and dough products such as gluten-free or regular short-cut and long-cut pasta and dough sheets. We supply machines ranging from small craft pasta-making lines to extruders for industrial production lines.

Double-tank extrusion press

Model: EP50

Hourly output: 40/50 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

  • AISI 304 stainless steel frame
  • Double kneading tanks for continuous production
  • Pasta cutter with an electronic blade for format length adjustment
  • Extrusion cylinder set up for water cooling
  • Electromechanic control panel
  • Machine provided with CE compliance certificate
combined-extrusion-press

Double-tank combined press

Model: EP50R

Extruded patsa hourly output: 40/50 kg/h

Hourly output for ravioli: 30/40 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

An interchangeable-mould ravioli-making unit is fitted on the machine side, which allows producing individual double-sheet ravioli of various formats.

  • AISI 304 stainless steel frame
  • Double kneading tanks for continuous production
  • Pasta cutter with an electronic blade for format length adjustment
  • 120mm ravioli-making unit with easily interchangeable moulds
  • Extrusion cylinder set up for water cooling
  • Electromechanic control panel
  • Machine provided with CE compliance certificate
extrusion-press-pasta-sheet

Double-tank extrusion press

Model: EP100

Hourly output: 80/100 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

  • AISI 304 stainless steel frame
  • Double kneading tanks for continuous production
  • Pasta cutter with an electronic blade for format length adjustment
  • Extrusion cylinder set up for water cooling
  • Electromechanic control panel
  • Machine provided with CE compliance certificate

Double-tank extrusion press

Model: EP150

Hourly output: 150/200 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

  • AISI 304 stainless steel frame
  • Double kneading tanks for continuous production
  • Pasta cutter with an electronic blade for format length adjustment
  • Extrusion cylinder set up for water cooling
  • Electromechanical panel or PLC
  • Machine provided with CE compliance certificate

Double-tank extrusion press

Model: EP200

Hourly output: 200/280 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

  • AISI 304 stainless steel frame
  • Double kneading tanks for continuous production
  • Pasta cutter with an electronic blade for format length adjustment
  • Extrusion cylinder set up for water cooling
  • Electromechanical panel or PLC
  • Machine provided with CE compliance certificate

Single-tank vertical press for continuous production

Model: EP300-VR

Hourly output: 350 kg/h

Model: EP400-VR

Hourly output: 400 kg/h

Press for the production of various fresh pasta formats with a vertical cutter head for long-cut egg pasta or plain pasta This machine can process gluten-free or regular flour and wheat semolina.

This press is designed to be fed with a pre-dough coming from dough mixers.

  • AISI 304 stainless steel frame
  • Vertical dough cutter with an electronic blade for format length adjustment
  • Extrusion cylinder set up for water cooling
  • Fan-equipped collection chute
  • Electromechanical panel or PLC
  • Machine provided with CE compliance certificate
pasta-extrusion-press

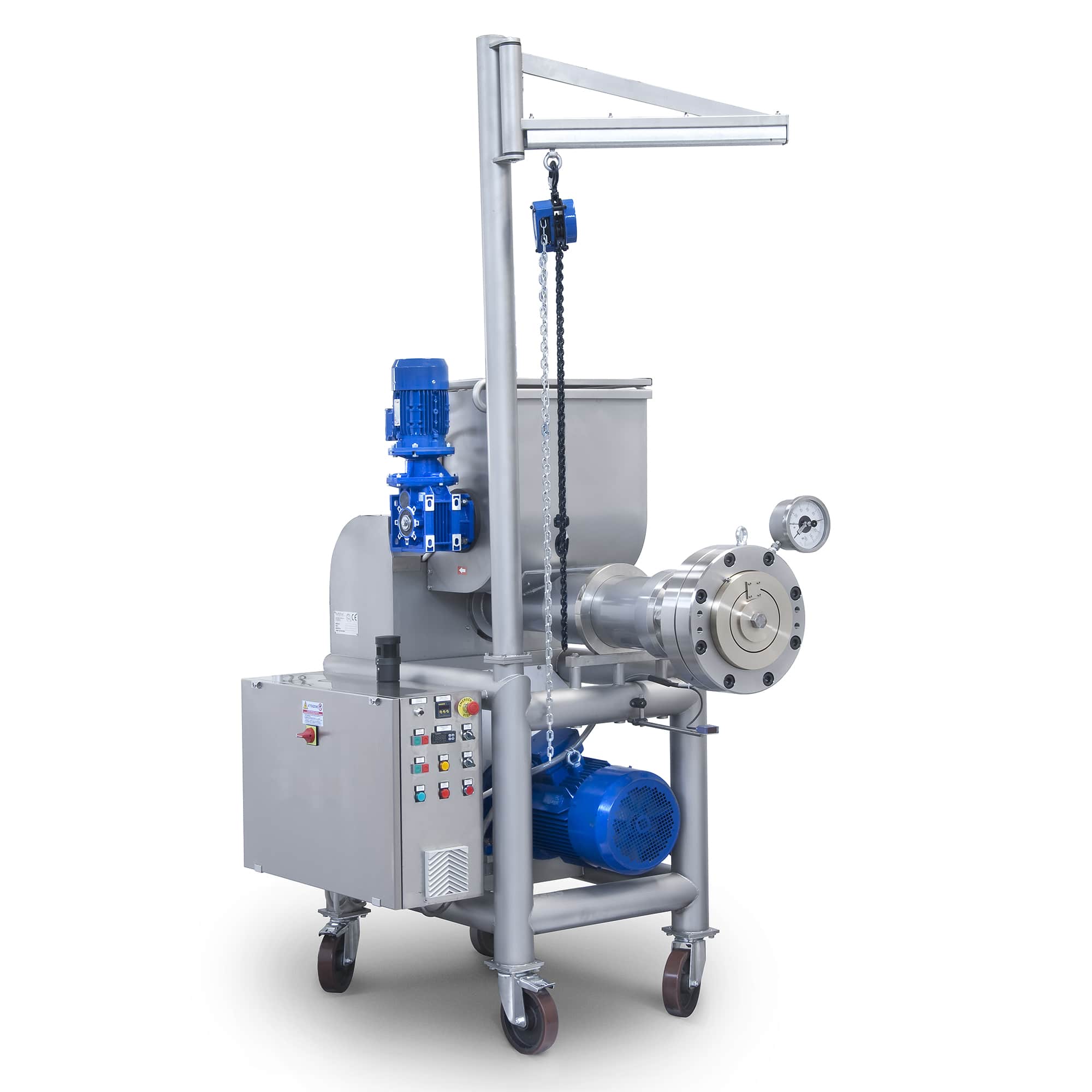

Single-tank horizontal press for continuous production

Model: EP300-OR

Hourly output: 350 kg/h

Model: EP400-OR

Hourly output: 400 kg/h

Press for the production of a wide range of fresh or dried pasta formats such as egg-based or plain dough sheets and short-cut and long-cut pasta. The press can process gluten-free or regular flour or wheat semolina. Moreover, the machine can produce dough sheets of different thicknesses to feed forming machines.

  • AISI 304 stainless steel frame
  • Horizontal pasta cutter unit with electronic blade for the adjustment of format length
  • Extrusion cylinder set up for water cooling
  • Electromechanical panel or PLC
  • Machine provided with CE compliance certificate
die-washer-pasta-industry

Die washer

Model: MICRO

  • AISI 304 stainless steel frame
  • For 100mm to 300mm diameter dies
